【创客】用回收材料制成的储物架

The Storage Rack Made From Recycled Materials

2015-8-31 16:26:34

2010年12月从垃圾堆里回收了一些木条板。

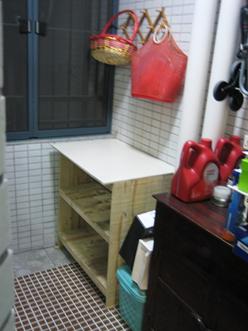

因为自家的一个小型储物室需要一个储物架，正好可以利用这些回收的材料，所以我就自己动手制作了一个储物架。

稳固适用、工具简单、材料便宜、做工容易、减低废物。

In December 2010, some of the wood board from the garbage heap.

Because one of its own small storage compartment requires a storage rack, which can be used to recover the material, so I have to make a storage rack.

Stable and suitable, Simple tools, Cheap materials, Easy to do, Low waste.

Step 1: 回收木板条/ Recycling wood board

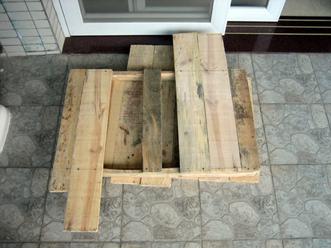

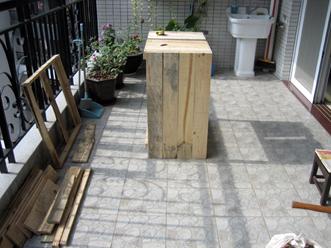

从户外垃圾堆里回收的包装木条板。

Wood packaging board recycling from outdoor garbage heap.

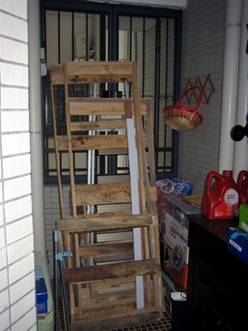

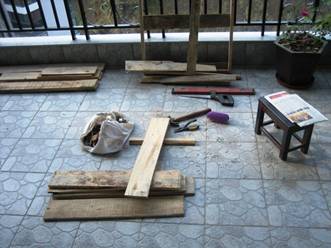

细心拆解。

Careful disassembly.

Step 2: 设计/Design

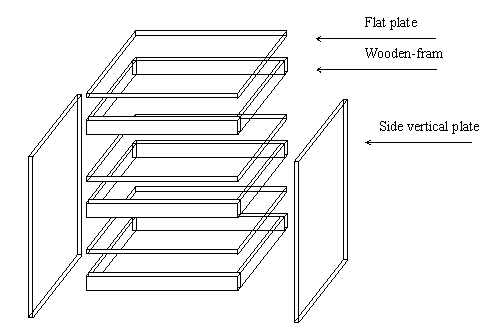

工艺结构示意图 / Structure diagram

1. 考虑储物室可容纳储物架的空间大小；

2. 参考常规家具的尺寸规范、工艺标准；

3. 取决于手头现有的回收木板条原材料规格和数量。

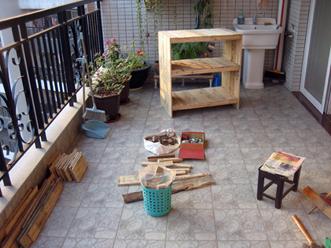

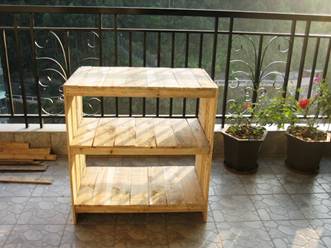

设计的总体尺寸：长800mm，宽500mm，高850mm

制作程序：

1. 选择宽度约40mm的木条用于制作成木框，起到加强承受重量的作用；

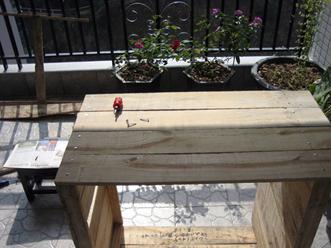

2. 然后将较宽的木板条拼成平面板，铺装在木框上面，制作成储物架的横格板；

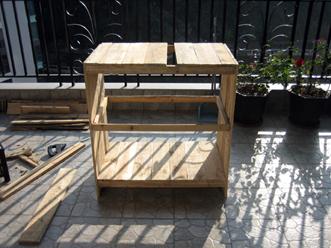

3. 继续选择较宽的木板条拼成平板，作为侧立板，安装在上下两个横格板上，制作成储物架的整体框架；

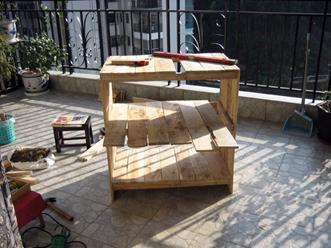

4. 安装固定中层的横格板。

固定件：木螺丝

1． Consider the space size of the storage compartment.

2． Standard Specification and process standard for reference to conventional furniture.

3． Depends on the fraw material specifications and quantities of the existing recycling the wood strips.

The overall design dimensions: length 800mm, width 500mm, high 850mm

Making process:

1. Select the wood of about 40mm width for making wooden frame, to strengthen the role of bear the weight;

2. Then the wide strips of wood into flat, pavement on the wooden frame above, made into a horizontal grid plate in the storage rack;

3. To choose a wide wooden strip mosaic flat, as a side vertical plate, mounted on the upper and lower two horizontal grid plate, made into a storage rack overall framework;

4. Install the fixed middle horizontal grid plate.

Fixed parts: wood screw
